CAD system for supporting design of parking lot (2D)

Product detailsPrice/purchase

Program overview
"Parking drawing system" is a CAD system which supports parking design (2D) based on the parking standards which is described in regulations and references below. The automatic arrangement of parking bays and their individual editing is possible by drawing the parking partitions (outer line, vehicles' entrance, vehicles' way etc.) via a simple operation of a 2D CAD system. As for the parking lot drawing, the simulation of the vehicle turning can be conducted by linking with the 'Vehicle Trajectory System'.

Standards, regulations and reference literature
  • Standard Parking Regulations
  • Road Design Standards

Related information
New product introduction

< Ver.1.01.00 (Released October 18th, 2011 >
  1. Output function of data linked with UC-win/Road was added.
Linkage with UC-win/Road

Program functions and features
Drawing of parking partition
  • Parking partitions can be drawn easily by using the basic drawing command of 2D CAD (Straight line, arbitrary polygon). Moreover, correct and efficient drawing is possible by importing existing as-built drawings (SXF, DWG/DXF, JWW/JWC, PSX)

The arrangement of the parking boxes
  • The parking boxes are arranged by the specified standards in the drawn partition of the parking lot.
  • The parking bays (outer parking bays and internal parking) can be arranged according to the specified standards in the parking lot drawing by the functions of "batch arrangement" and "individual arrangement".

    Outer parking bays : The outer parking bays arranged along the external edge of the parking lot
    Internal parking : Parking bays being arranged in accordance with parking standards
    Batch arrangement : Automatic arrangement of outer parking bays and internal parking
    ※Internal parking is arranged avoiding the drawn excluded areas, entrance and driving ways.
    Individual Arrangement : Arrangement of parking bays on the arbitrary position
    Editing : Arranged parking bays can be edited (displacement, movement and deletion).

  • →
    Importing the existing drawing The arrangement of the parking bays
     and editing

■Editing function
  • Displacement of parking boxes:
    Changing the type of parking bays by a click is possible.
  • Arrangement of the signs:
    Arranging the mark of the driving direction on the arbitrary position
  • Arrangement of quantitative table:
    Quantitative table shows the calculated figure of the drawn parking partition (outer line) and how the parking bays are arranged.

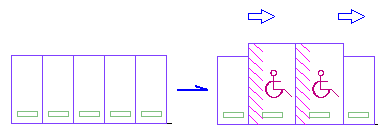

  • Displacement of parking bays and Arrangement of the signs
    (driving direction)

    Whole areas  2653.8m2
    Areas of parking lots 1393.0m2
    Small size   (arranged at a right angle) 112 cars
    For handicapped  (arranged at a right angle) 5 cars
    Quantitative table of parking

■Setting of parking bays and line attribute
  • The parking measurement rules abide by "Standard Parking Regulations & Road Design Standards" and the type of the parking bays can be chosen from the list, arranged and decided according to each type of vehicle. Measurement of the parking bays can be added and edited and includes the arrangement and type of parking bays for 'special' vehicles such as buses and articulated lorries etc. Moreover, line attribute (line color, line width) can be set according to the each drawing element (outer line, parking bays etc.) and a simple drawing can be created.
  • Setting the size of parking bays Setting of the line attribute

■Visual Output
  • Output by SXF(SFC,P21), AutoCAD(DWG,DXF), JW-CAD(Jww,Jwc),  UC-Draw is supported as well as direct print.

  • Drawings can be exported and used in the "Vehicle trajectory drawing system'. In addition, it is possible to obtain confirmation as to whether or not there is a problem with regard to the movement of the vehicles within the drive way and parking bays.
  • Result of linkage with vehicle trajectory drawing system
